Switch ZyXEL GS1350-26HP-EU0101F 24 p 10 / 100 / 1000 Mbps

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Switch ZyXEL GS1350-26HP-EU0101F 24 p 10 / 100 / 1000 Mbps at an unbeatable price.

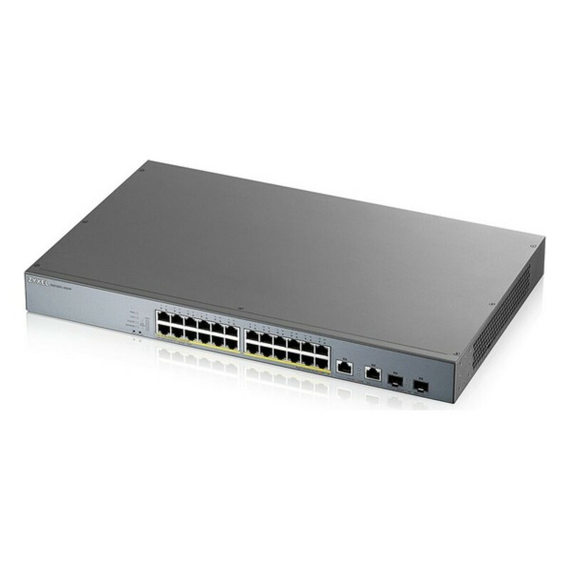

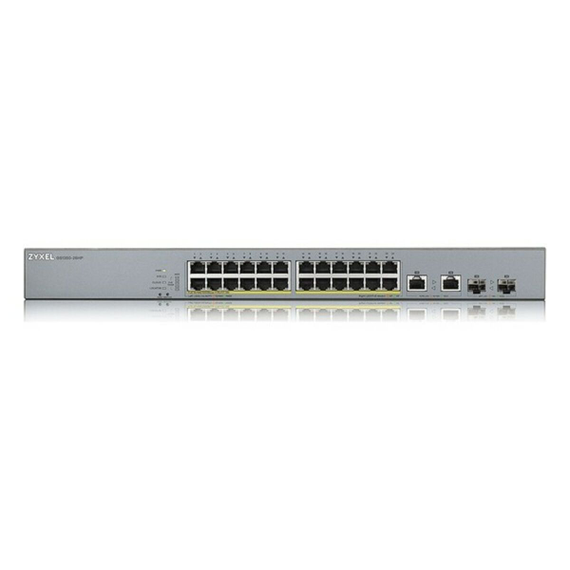

The GS1350-26HP-EU0101F by ZyXEL is a high-performance managed switch designed for professional applications that require a robust and reliable network infrastructure, especially suitable for managing video surveillance systems (CCTV) and demanding business environments. This model features 24 RJ45 Gigabit Ethernet LAN ports providing efficient data transmission up to 10/100/1000 Mbps, enabling simultaneous connection of multiple devices and IP cameras without performance loss. It also includes SFP ports for fiber optic links, allowing flexible and high-speed expansion for backbone or additional network connections. Its advanced Layer 2 (L2) management ensures complete control over network segmentation, traffic prioritization, and VLAN configuration, adapting to the evolving needs of installations with varying complexity. PoE (Power over Ethernet) support enables direct powering of compatible devices through network cables, reducing the need for extra power sources and simplifying deployments where access to outlets is limited. Built with grey metal and ready for rack mounting, the switch offers durability and easy integration into standard communication cabinets. With a switching capacity of 52 Gbit/s and a MAC address table supporting up to 8000 entries, the device handles intensive traffic and large network topologies without bottlenecks. It complies with a wide range of key IEEE standards, ensuring compatibility and stability in any professional environment. The GS1350-26HP-EU0101F by ZyXEL is a versatile and powerful solution, ideal for those looking to expand and manage complex networks efficiently and securely.

• Ports:
  • 100/1000 Mbps x 24
  • Gigabit (RJ-45/SFP) x 2
  • 24
• AC input: 100 - 240 V
• Frequency:
  • 50/60 Hz
  • 50-60 Hz
• Energy consumption: 448,9 W
• Ports PoE:
  • 24
  • 375 W
• Performance: 52 Gbps
• Forwarding Rates: 38,7 Mbps
• Buffer: 525K bytes
• Approx. dimensions: 44,1 x 27 x 4,4 cm
• Working range for temperature: -20ºC / 50ºC
• Working range for humidity: 5% - 95%
• Connections:
  • RJ45
  • RJ45 x 24
  • 2
  • Ethernet LAN
  • SFP
• Product with plug: Yes
• Type of plug: Plug EU
• Colour: Grey
• Type: Switch
• Power supply:
  • Electric Network
  • CA cable
• Voltage:
  • 100-240 V
  • 100 - 240 V
• Material: Metal
• Holder: Multi-support
• Characteristics: LED in operation indicator
• AC input frequency: 50-60 Hz
• Weight: 0,41 kg
• Approx. temperature: -40º / 70º
• Safety: IGMP

Just For Surveillance
Crafted for CCTV, Zyxel introduces the brand-new GS1350 smart managed switch for surveillance applications

New outlook
Coated in titanium grey, the GS1350 excels with an eye-catching identity dedicated for surveillance Switch.

Specialized PoE software features for surveillance

Detect and recover failed IP cameras and powered devices automatically with customizable granular parameters suitable for any types of devices and scenarios.
Delivers nonstop power to keep cameras in operation, even if switch under-goes maintenance for firmware or configuration updates, significantly reducing reboot time.

Easy for long-distance deployment
Traditionally, PoE switch delivers power and data within the distance of the 100 meter limitation. The GS1350 series fulfills the need to deploy IP camera or power devices using existing Cat 5e cable to distant locations. By enabling extended-range mode, instantly achieve distant deployments up to 250m. Save your money and effort with simply one PoE.

High power budget, intuitive front panel design
The GS1350 series includes four models with large power budgets of up to 375 W accommodating the requirement for powering up multiple IP cameras. The intuitive LED indicator on the front panel allows inspecting real-time PoE status. In addition, the one-touch “Restore” button on GS1350 Series helps effortless recovery from misconfigurations.

Unique hardware, robust design

Stabilized power
Filters electrical noise and surge to ensure supplying stable power to PoE and the system.

Selected power supply
2X Surge and ESD protection.

Isolated Circuit Design
Provides protection to isolate power surges from Ethernet and power supply.

Intelligent System Monitor
Keeps the system operational from anomalies.

Patented Ethernet Protection
- 4X Surge protection.
- 2X ESD resistant.

• Switch type: Managed
• Switch layer: L2
• Web-based management: Y
• Configuring Location Settings (CLI): Y
• System event log: Y
• MIB support: RFC 1066, RFC 1213, 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011, 2012, 2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819, 2925, RFC 3621, RFC 4293, RFC 4292, RFC 4022, RFC 4113
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Combo SFP ports quantity: 2
• Networking standards: IEEE 802.1D,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1w,IEEE 802.3,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
• 10G support: N
• Copper ethernet cabling technology: 10BASE-T,100BASE-TX,1000BASE-T
• Port mirroring: Y
• Flow control support: Y
• Broadcast storm control: Y
• Rate limiting: Y
• Spanning tree protocol: Y
• VLAN support: Y
• Virtual LAN features: MAC address-based VLAN,Port-based VLAN
• Number of VLANs: 256
• Fiber ethernet cabling technology: 1000BASE-X
• MAC address table: 8000 entries
• Switching capacity: 52 Gbit/s
• Forwarding rate: 38.7 Mpps
• Packet buffer memory: 0.525 MB
• DHCP features: DHCP client,DHCP relay,DHCP snooping
• IGMP snooping: Y
• IGMP proxy: Y
• Security algorithms: SNMP,SNMPv3,SSH,SSL/TLS
• Loop protection: Y
• Queue scheduling algorithms: SPQ,WFQ,Weighted Round Robin (WRR)
• Multicast support: Y
• Rack mounting: Y
• Product colour: Grey
• LED indicators: Y
• Electromagnetic compatibility: CE, FCC, C-Tick, A; BSMI CNS13438
• Noise level: 40.1 dB
• Firmware upgradeable: Y
• Mean time between failures (MTBF): 888495 h
• AC input voltage: 100 - 240 V
• AC input frequency: 50/60 Hz
• Power consumption (max): 448.9 W
• Power over Ethernet (PoE): Y
• Power over Ethernet (PoE) ports quantity: 24
• Total Power over Ethernet (PoE) budget: 375 W
• Operating temperature (T-T): -20 - 50 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 5 - 95%
• Storage relative humidity (H-H): 5 - 95%
• Heat dissipation: 1530.75 BTU/h
• Width: 441 mm
• Depth: 270 mm
• Height: 44 mm
• Weight: 3.58 kg
• Cables included: AC
• Rack mount kit: Y
