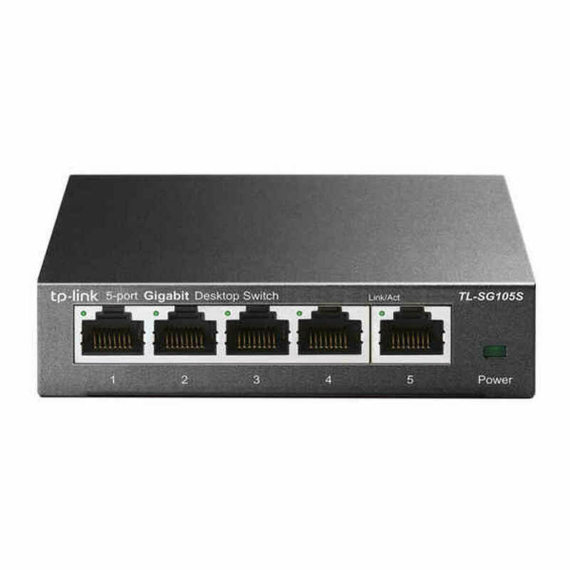

Switch TP-Link TL-SG105S

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Switch TP-Link TL-SG105S at an unbeatable price.

The TP-Link TL-SG105S switch is an unmanaged device designed to provide efficient and reliable network connectivity in small to medium environments. It features five Gigabit Ethernet RJ-45 ports (10/100/1000 Mbps), allowing fast, bidirectional transfers in full duplex mode, ensuring optimal data transmission performance. This model supports widely compatible network standards such as IEEE 802.1p, 802.3, 802.3ab, 802.3u, and 802.3x, guaranteeing easy integration with various existing infrastructures. Its robust design includes a black metal and steel casing, with options for wall mounting and multiple brackets, aimed at maximizing durability and installation flexibility. This switch stands out by including advanced features like support for jumbo frames up to 16,000 bytes, a 1 MB packet buffer, and Quality of Service (QoS), facilitating efficient traffic management and prioritization of critical data. It also offers auto-negotiation of ports, auto MDI/MDI-X, flow control, and MAC tables with 2000 entries, simplifying setup and improving network connection management. The device operates with an included power supply of 9 V and 0.6 A, with a maximum power consumption of 2.3 W, making it energy efficient. Its operating temperature ranges from 0 to 40 °C, with storage capabilities from -40 to 70 °C, and supports functional relative humidity from 10 to 90%, ensuring reliability under various environmental conditions. The TL-SG105S is certified by international bodies such as CE, FCC, and RoHS, ensuring quality standards and regulatory compliance. Its compact size of 99.8 mm wide, 97.8 mm deep, and 25 mm high facilitates integration in tight spaces, complemented by LED indicators that provide visual status and connection activity. Without support for Power over Ethernet (PoE) or rack mounting, this switch targets users needing a simple plug-and-play solution without complex configurations, ideal for optimizing home networks, small offices, or environments requiring a stable, fast connection without advanced management. In short, the TP-Link TL-SG105S offers a balanced combination of speed, durability, and basic functionality to meet essential wired network interconnection needs.

• Product with plug: Yes
• Type of plug: Plug EU
• Type: Switch
• Power supply:
  • Electric Network
  • CA cable
  • Iincluded
  • DC
• Colour: Black
• Material:
  • Steel
  • Metal
• Characteristics:
  • Wall mounting
  • Plug and play
  • LED in operation indicator
• Holder: Multi-support
• Voltage:
  • 9 V
  • 5 V
  • 220 V
• Frequency: 50 Hz
• Ports: 5
• Approx. weight: 200 g
• Connections:
  • Ethernet LAN
  • USB x 3
  • RJ45 x 5
• Certificate: CE, FCC, RoHS
• Working range for humidity: 10 % - 90 %
• Approx. temperature: -40º / 70º
• Includes: User manual
• Safety: IGMP
• Amperage: 0,6 A

What This Product Does

The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch

Featured with 5 10/100/1000Mbps ports, TL-SG105S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Traffic Optimization

802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

Easy to use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.

• Switch type: Unmanaged
• Switch layer: L2
• Quality of Service (QoS) support: Y
• Basic switching RJ-45 Ethernet ports quantity: 5
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 5
• Networking standards: IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
• 10G support: N
• Copper ethernet cabling technology: 10BASE-T,100BASE-TX,1000BASE-T
• Cable types supported: Cat3,Cat4,Cat5,Cat5e
• Full duplex: Y
• Flow control support: Y
• Auto MDI/MDI-X: Y
• Auto-negotiation: Y
• MAC address auto-learning supported: Y
• MAC address auto-aging supported: Y
• MAC address table: 2048 entries
• Switching capacity: 10 Gbit/s
• Forwarding rate: 7.4 Mpps
• Store-and-forward: Y
• Jumbo frames support: Y
• Jumbo frames: 16000
• Packet buffer memory: 1 MB
• IGMP snooping: Y
• Multicast support: Y
• Rack mounting: N
• Product colour: Black
• Housing material: Steel
• LED indicators: Y
• Wall mountable: Y
• Certification: CE, FCC, RoHS
• Plug and Play: Y
• Power supply included: Y
• AC input voltage: 220 V
• AC input frequency: 50 Hz
• DC input voltage: 5 V
• Input current: 0.6 A
• Output voltage: 9 V
• Output current: 0.6 A
• Power consumption (max): 2.3 W
• Power over Ethernet (PoE): N
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Heat dissipation: 7.83 BTU/h
• Width: 99.8 mm
• Depth: 97.8 mm
• Height: 25 mm
• Cables included: AC
• User guide: Y
• AC adapter included: Y
• Package type: Box
• Rubber feet: Y
• Package width: 128 mm
• Package depth: 125 mm
• Package height: 92 mm
