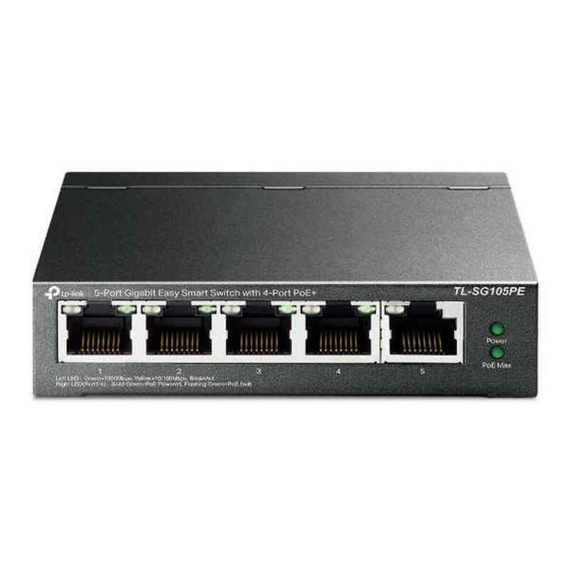

Switch TP-Link TL-SG105PE

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Switch TP-Link TL-SG105PE at an unbeatable price.

The TL-SG105PE from TP-Link is a high-efficiency, robust managed switch designed for professional environments requiring fast and reliable connectivity. This device features 5 Gigabit RJ45 Ethernet ports (10/100/1000 Mbps), ideal for integrating devices into local networks with a total switching capacity of 10 Gbit/s, ensuring optimal and simultaneous performance across all connections. Made with black metal material, it offers durability and resistance, along with a compact design that facilitates integration into small spaces or standard racks. The TL-SG105PE supports advanced standards such as IEEE 802.1Q for VLAN and IEEE 802.1p for Quality of Service (QoS), allowing improved traffic management and prioritization of critical network data. It stands out for its compatibility with Power over Ethernet (PoE) technology, delivering up to 30 W to power devices like IP cameras, access points, or VoIP phones directly from the switch, eliminating the need for additional adapters. As a managed Layer 2 switch, it simplifies network configuration, monitoring, and traffic segmentation, adapting to business infrastructures that demand advanced control and operational flexibility. It also includes a MAC address table capable of handling 2000 entries, ensuring efficient management of multiple simultaneous connections without data loss or delay. Its LED indicators provide clear status visualization for each port and overall connection, facilitating real-time monitoring. In summary, the TP-Link TL-SG105PE is a reliable and versatile Gigabit switch designed to enhance and simplify connectivity for small and medium networks, combining speed, advanced management, and PoE in a solid, professional format.

• Connections:
  • RJ45
  • Ethernet LAN
  • USB x 3
  • RJ45 x 5
• Product with plug: Yes
• Type of plug: Plug EU
• Type: Switch
• Power supply:
  • Electric Network
  • Iincluded
  • DC
• Colour: Black
• Material: Metal
• Characteristics: LED indicator
• Power: 30 W
• Ports: 5
• Approx. weight: 400 g
• Working range for humidity: 10 % - 90 %
• Approx. temperature: -40º / 70º
• Includes: User manual
• Safety: IGMP

The TL-SG105PE is an 5-port Gigabit Easy Smart Switch with 4 PoE+ ports, represents a powerful upgrade from an unmanaged switch. It is designed specially for small businesses that require simple network management and PoE function. The TL-SG105PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, PoE Auto Recovery and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG105PE can improve security and meet more network segmentation requirements.

Power Over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).

Overload Arrangement
TL-SG105PE has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 65 W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Intelligent Power Management
Priority (port 1>port 2>port 3>port 4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are consuming 15.4 W respectively. If an additional PoE device with 20 W is inserted to port 3, the system will cut off the power of port 4 to compensate for the overload.

Effective Management
TL-SG105PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, PoE Auto Recovery and enhanced QoS.
With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG105PE can identify and even locate connection problems on your business network. Also, administrators can designate the priority of the traffic based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free.
Additionally, to improve security and network performance, TL-SG105PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices.
TL-SG105PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.

Easy to Use
TL-SG105PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

• Switch type: Unmanaged
• Switch layer: L2
• Quality of Service (QoS) support: Y
• Web-based management: Y
• Basic switching RJ-45 Ethernet ports quantity: 5
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Networking standards: IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
• 10G support: N
• Copper ethernet cabling technology: 10BASE-T,100BASE-FX,100BASE-TX,1000BASE-T
• Cable types supported: Cat3,Cat4,Cat5,Cat5e,Cat6
• Port mirroring: Y
• Link aggregation: Y
• Broadcast storm control: Y
• Rate limiting: Y
• Auto MDI/MDI-X: Y
• Auto-negotiation: Y
• VLAN support: Y
• MAC address table: 2000 entries
• Switching capacity: 10 Gbit/s
• Forwarding rate: 7.44 Mpps
• Store-and-forward: Y
• Number of queues: 4
• Jumbo frames support: Y
• Jumbo frames: 16000
• Packet buffer memory: 1.5 MB
• IGMP snooping: Y
• Loop protection: Y
• Product colour: Black
• LED indicators: Activity, Link, PoE, Power, Speed, Status
• Certification: FCC, CE, RoHS
• Fanless: Y
• Power supply included: Y
• Power consumption (max): 75.16 W
• Power over Ethernet (PoE): Y
• Power over Ethernet (PoE) ports quantity: 4
• Total Power over Ethernet (PoE) budget: 65 W
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 95%
• Heat dissipation: 256.3 BTU/h
• Width: 99.8 mm
• Depth: 98 mm
• Height: 25 mm
• User guide: Y
