Switch D-Link DGS-1016S

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Switch D-Link DGS-1016S at an unbeatable price.

The DGS-1016S from D-Link is a desktop switch designed for network environments requiring high efficiency and reliability. It features 16 RJ45 ports supporting speeds of 10/100/1000 Mbps, enabling Gigabit Ethernet connections for fast and stable data transfer. This model complies with IEEE 802.3 standards, including 10BASE-T, 100BASE-TX, 1000BASE-T, 802.3x Flow Control for flow control, 802.1p QoS for quality of service, and 802.3az EEE for energy efficiency, reducing power consumption without sacrificing performance. Its switching capacity is 32 Gbps, with advanced features like Auto-MDI/MDIX crossover on all ports eliminating the need for special crossover cables, and a secure store-and-forward scheme that improves packet integrity and processing speed. It supports jumbo frames up to 9,216 bytes and offers auto-negotiation and adaptation to speeds and duplex modes (full and half), facilitating integration with various devices and networks. Additionally, it includes a quality of service architecture with 8 strict priority queues, optimizing traffic and prioritizing critical data to ensure efficient flow.

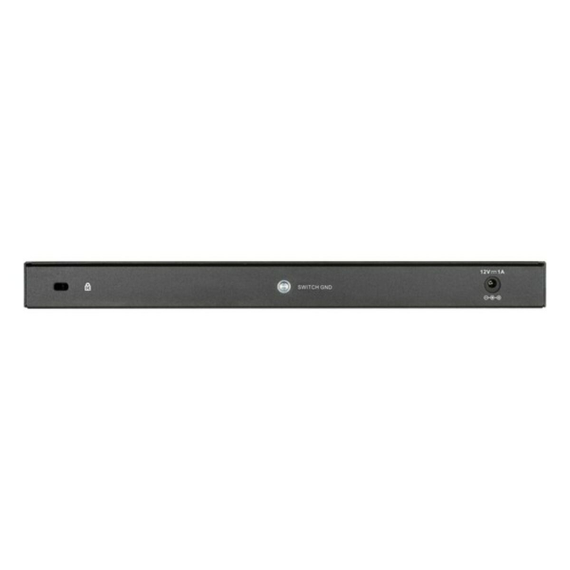

Regarding physical specifications, the DGS-1016S switch has a compact black metal casing that provides durability and a lightweight design of 0.77 kg. Its dimensions of 280 x 110 x 25 mm make it easy to place in small workspaces. It is equipped with LED indicators showing link status, activity, and speed per port, plus a general power indicator, enabling quick visual monitoring. Power is supplied via an external 12 V / 1 A adapter, with very low consumption ranging from 3.37 W in standby to 8.89 W at maximum use, contributing to reduced energy impact and quiet operation. It supports operating temperatures between 0 and 40 °C and storage from -40 to 70 °C, ensuring resilience in various environmental conditions. Its design complies with electromagnetic emission standards CE Class A, FCC, ICES 003, and RCM, ensuring compatibility and electrical safety.

With a MAC address table of 8,000 entries and a 512 KB RAM buffer, the DGS-1016S efficiently handles forwarding rates of 14,880 pps for Ethernet, 148,800 pps for Fast Ethernet, and 1,488,000 pps for Gigabit Ethernet per port, optimizing performance in high-demand data networks. This D-Link switch is an ideal solution for professional or home networks that require stability, speed, and efficient data traffic management, combining advanced features and a robust design to ensure reliable and continuous operation.

• Width: 280 mm
• Approx. temperature:
  • 40º C / 70º C
  • -40º / 70º
• Speed:
  • 10/100/1000 Mbps
  • 32 Gbps
  • 1 Gbps
• Amperage:
  • 1 A
  • 10 A
• Colour: Black
• Type:
  • Tablecloth
  • Switch
• IP rating: IP20
• Product with plug: Yes
• Type of plug: Plug EU
• Power supply: Electric Network
• Connections:
  • RJ45
  • Ethernet LAN
• Material: Metal
• Voltage: 12 V
• Ports: 16
• Characteristics: Plug and play
• Working range for humidity: 10 % - 90 %

Slim, Low-Profile Design
Allowing the switch to be placed on the desktop or mounted on the wall

High-Speed Gigabit Networking
Connect up to 16 devices for fast file transfers and smooth media streaming

Silent Operation
Fanless design means the switch is virtually silent when in use

Energy Efficient
Integrated energy-saving technology to reduce power usage automatically

Connect More, Connect Faster
The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.

Silent and built to last
Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.

Visual Cable Diagnostics
LEDs on each port allow you to quickly see when something is wrong with the connection.

Good for your wallet, great for the planet
With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.

• Switch type: Unmanaged
• Quality of Service (QoS) support: Y
• Basic switching RJ-45 Ethernet ports quantity: 16
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Networking standards: IEEE 802.1p,IEEE 802.3az,IEEE 802.3x
• 10G support: N
• Copper ethernet cabling technology: 1000BASE-T
• Full duplex: Y
• Half duplex: Y
• Flow control support: Y
• Auto MDI/MDI-X: Y
• Auto-negotiation: Y
• Cable length detection: Y
• MAC address table: 8000 entries
• Switching capacity: 32 Gbit/s
• Store-and-forward: Y
• Number of queues: 8
• Jumbo frames support: Y
• Jumbo frames: 9216
• Packet forwarding rate (1 Gbps): 1488000 pps
• Packet forwarding rate (100 Mbps): 148800 pps
• Packet forwarding rate (10 Mbps): 14880 pps
• Packet buffer memory: 0.512 MB
• Product colour: Black
• LED indicators: Activity, Link, Power, Speed
• Safety: LVD
• Certification: CE, FCC, ICES 003, RCM
• Plug and Play: Y
• Fanless: Y
• Mean time between failures (MTBF): 564658 h
• DC input voltage: 12 V
• Input current: 1 A
• Power consumption (max): 8.89 W
• Power over Ethernet (PoE): N
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 95%
• Heat dissipation: 30.32 BTU/h
• Width: 280 mm
• Depth: 110 mm
• Height: 25 mm
• Weight: 770 g
