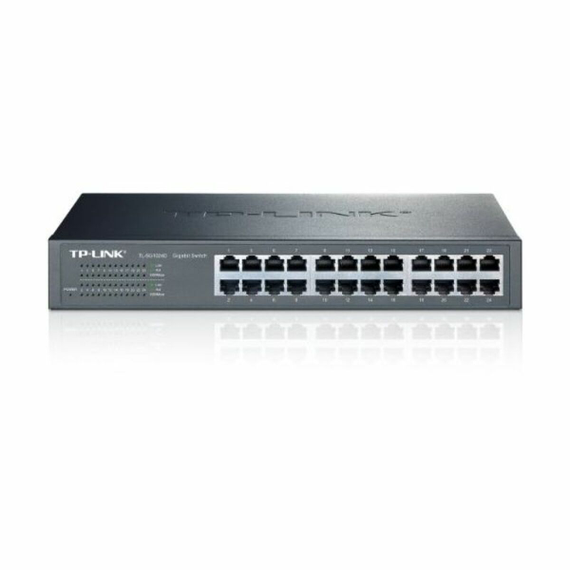

Cabinet Switch TP-Link TL-SG1024D 48 Gbit/s

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Cabinet Switch TP-Link TL-SG1024D 48 Gbit/s at an unbeatable price.

The TL-SG1024D from TP-Link is an unmanaged rackmount switch designed to provide reliable and efficient network connectivity in professional and office environments. This device features 24 RJ-45 Gigabit Ethernet ports (10/100/1000 Mbps), allowing fast and stable connections for multiple devices simultaneously, supporting full-duplex bidirectional communication mode, which significantly improves network performance by enabling simultaneous data transmission and reception. Its switching capacity is 48 Gbit/s, ensuring high data throughput that prevents bottlenecks, while the MAC address table supporting up to 8000 entries facilitates efficient traffic management and segmentation within the local network. The TL-SG1024D complies with recognized standards such as IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3x, ensuring compatibility and performance according to modern network protocols. Additionally, its physical design includes a format that allows rack mounting, making it easy to integrate into cabinets or data centers with professional organization, and it is powered via a DC power input. It is made with black and gray materials, suitable for technical or corporate environments, and uses standard connections that simplify installation and maintenance. This switch is ideal for expanding or upgrading medium-sized networks with a robust and simple product that offers stable and fast connectivity without advanced configuration. Overall, the TP-Link TL-SG1024D represents an efficient and practical solution to ensure gigabit connectivity in business or office networks.

• Type of plug: Plug EU
• Product with plug: Yes
• Connections:
  • Ethernet LAN
  • RJ45
  • RJ45 x 24
  • SATA
• Power supply:
  • Electric Network
  • Electric cable
  • CA cable
  • AC 100-240 V / 50-60 Hz
  • Iincluded
  • CA
• Colour:
  • Grey
  • Black
• Voltage:
  • 100-240 V
  • 240 V
  • 100 - 240 V
• Frequency:
  • 50-60 Hz
  • 50 - 60 Hz
• Material: Copper
• Characteristics:
  • With cable
  • LED in operation indicator
• Platform: Windows
• Ports: 24
• Speed:
  • 48 MB/s
  • 1000 Mbps
• Type: Stackable
• Working range for humidity: 10 % - 90 %
• Approx. temperature: -40º / 70º
• Includes: User manual
• Nuclei: 1 core

What This Product Does
The TL-SG1024D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation TL-SG1024D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1024D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

• Switch type: Unmanaged
• Basic switching RJ-45 Ethernet ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 24
• Power connector: DC-in jack
• Networking standards: IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
• 10G support: N
• Cable types supported: Cat3,Cat4,Cat5,Cat5e
• Full duplex: Y
• Flow control support: Y
• Auto MDI/MDI-X: Y
• Auto-negotiation: Y
• MAC address table: 8000 entries
• Switching capacity: 48 Gbit/s
• Supported data transfer rates: 10/100/100 Mbps
• Forwarding rate: 35.7 Mpps
• Store-and-forward: Y
• Maximum data transfer rate: 1 Gbit/s
• Jumbo frames support: Y
• Jumbo frames: 10000
• Supported network protocols: CSMA/CD, TCP/IP
• Rack mounting: Y
• Stackable: Y
• Product colour: Grey
• LED indicators: Y
• Certification: FCC, CE, RoHS
• Power supply included: Y
• AC input voltage: 100 - 240 V
• AC input frequency: 50 - 60 Hz
• Power consumption (max): 13.08 W
• Power over Ethernet (PoE): N
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Operating temperature (T-T): 32 - 104 °F
• Heat dissipation: 44.63 BTU/h
• Width: 294 mm
• Depth: 180 mm
• Height: 44 mm
• Cables included: AC
• User guide: Y
• Package type: Box
• Rack mount kit: Y
• Package width: 400 mm
• Package depth: 250 mm
• Package height: 80 mm
• Dimensions (WxDxH): 294 x 180 x 44 mm
• Connectivity technology: Wired
• Bandwidth: 48 Gbit/s
• Power requirements: 100 - 240V, 50/60Hz
• Power supply type: AC
• Networking features: Gigabit Ethernet
• Connectivity LEDs: Y
