Cabinet Switch TP-Link TL-SG1016PE

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Cabinet Switch TP-Link TL-SG1016PE at an unbeatable price.

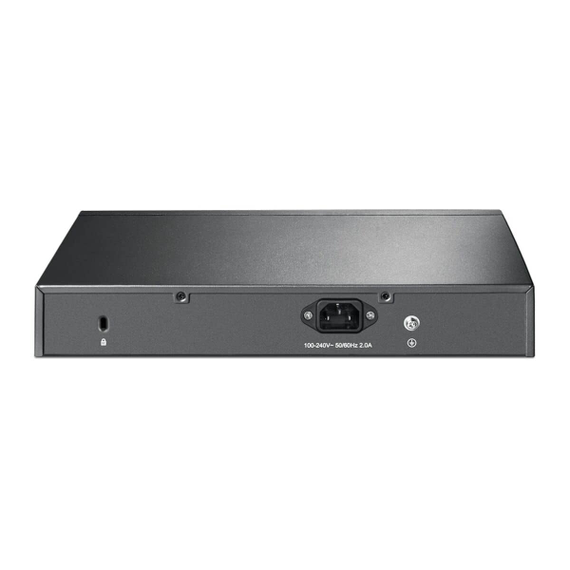

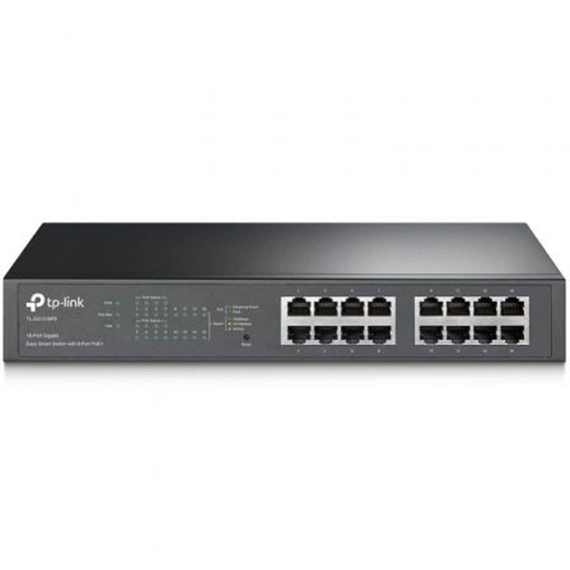

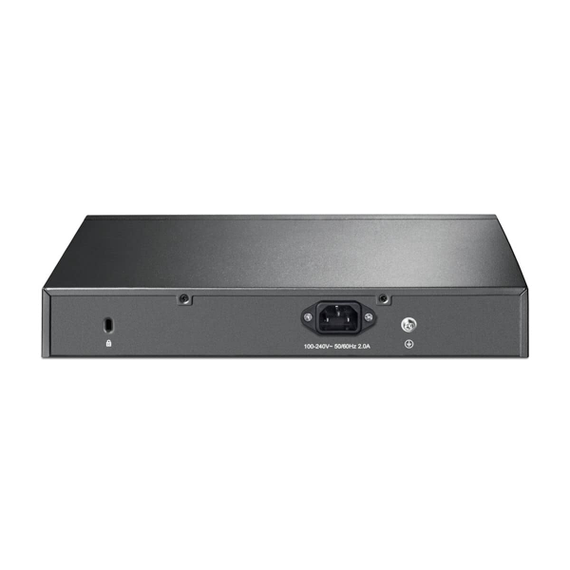

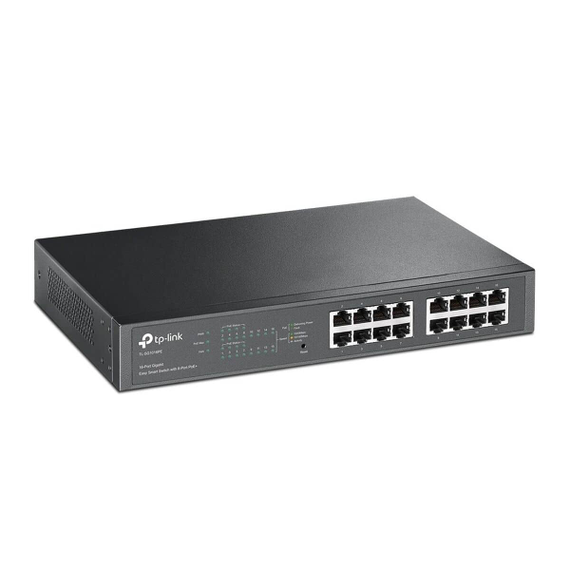

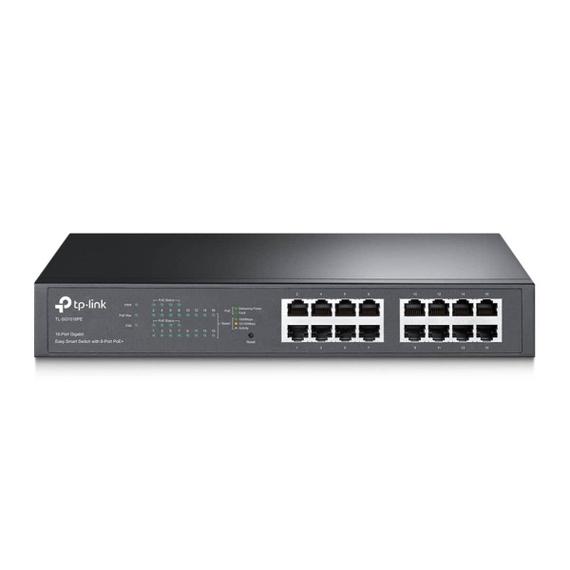

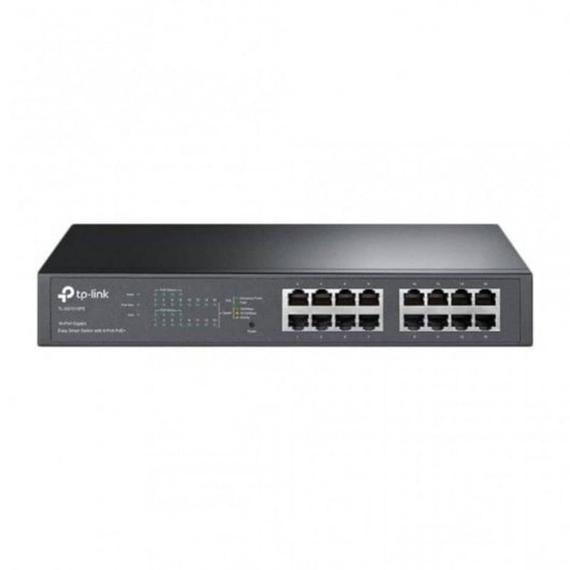

The cabinet switch TP-Link TL-SG1016PE is a professional rack-mount 1U network switch, suitable for communication cabinets in business or small-office environments that need high port density and PoE power in a single device. It features 16 RJ45 ports with 10/100/1000 Mbps (Gigabit Ethernet) support, allowing you to build a high-performance wired network for computers, servers, access points or IP cameras, with bandwidth up to 1000 Mbps per port. Integrated PoE+ (Power over Ethernet) supplies power to compatible devices directly through the network cable, simplifying wiring and reducing the need for external power adapters; the total available power lets you power multiple devices simultaneously within the unit’s PoE budget. Its metal chassis in black provides good heat dissipation and mechanical strength, with a form factor designed for cabinet mounting using the included mounting kit. The switch is optimized for stable, safe installation with 100 - 240 V ~ 50/60 Hz power input, includes a power cord (EU plug) and reaches a maximum power draw of around 110 W, with a dedicated PoE power budget, ideal for a network with several access points or cameras. It incorporates front status LEDs to monitor port status, network activity and PoE power at a glance, enabling basic supervision without extra tools. This model supports advanced traffic management such as IGMP snooping, which optimizes multicast traffic (for example, IP video), preventing unnecessary network congestion. Its compact design, with approximate dimensions of 29.4 x 18 x 4.4 cm and a weight of about 1.7 kg, fits easily into most standard racks, while the operating temperature and humidity range of around -40 ºC to 70 ºC and 10% - 90% relative humidity is intended for properly ventilated technical rooms. It is supplied with a user manual, possible CD-based resources and all required screws for installation, making it a complete Gigabit switching solution with integrated PoE+ for structured network infrastructures in communication cabinets.

• Type:
  • Cupboard
  • Switch
• Includes:
  • Self-assembly Kit
  • Instruction manual
  • Power Cord
  • CD
  • User manual
• Power supply:
  • Electric Network
  • Cable
  • Electric cable
  • CA cable
  • Iincluded
• Approx. dimensions: 29,4 x 18 x 4,4 cm
• Energy consumption: 110 W
• Speed:
  • 1 Gbps
  • 10/100/1000 Mbps
  • 1000 Mbps
• Type of plug: Plug EU
• Product with plug: Yes
• Ports:
  • 8
  • 16
• Feeding dish included: Yes
• AC input voltage: 100-240 V
• Voltage:
  • 100-240 V
  • 220 V
  • 240 V
  • 100 - 240 V
• Frequency:
  • 50-60 Hz
  • 50 - 60 Hz
• Connections:
  • 8
  • RJ45
  • SATA
  • Ethernet LAN
  • USB x 3
• Material: Metal
• Compatible: Windows
• Connectivity: Gigabit Ethernet
• Technology: 1000Base-T
• Standard: IEEE 802.1p Class of Service (CoS) prioritization
• Characteristics:
  • LED indicator
  • LED in operation indicator
• Certificate:
  • CE
  • RoHS
• Height: 4,4 cm
• Length: 18 cm
• Colour: Black
• Power:
  • 30 W
  • 110 W
• Ventilator: 1
• AC input frequency: 50-60 Hz
• Weight: 1,7 kg
• Working range for humidity: 10 % - 90 %
• Form factor: 1U
• Approx. temperature: -40º / 70º
• Safety: IGMP
• Nuclei: 1 core

What This Product Does

The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

• Switch type: Managed
• Quality of Service (QoS) support: Y
• Web-based management: Y
• Basic switching RJ-45 Ethernet ports quantity: 16
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 16
• Networking standards: IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
• 10G support: N
• Copper ethernet cabling technology: 10BASE-T,100BASE-TX,1000BASE-T
• Cable types supported: Cat3,Cat4,Cat5,Cat5e,Cat6
• Port mirroring: Y
• Full duplex: Y
• Flow control support: Y
• Link aggregation: Y
• Broadcast storm control: Y
• Rate limiting: Y
• Auto MDI/MDI-X: Y
• Auto-negotiation: Y
• VLAN support: Y
• Virtual LAN features: Tagged VLAN,Port-based VLAN
• Number of VLANs: 4000
• MAC address table: 8000 entries
• Switching capacity: 32 Gbit/s
• Throughput: 23.8 Mpps
• Store-and-forward: Y
• Number of queues: 4
• Jumbo frames support: Y
• Jumbo frames: 10000
• IGMP snooping: Y
• Static port security: Y
• Loop protection: Y
• Rack mounting: Y
• Stackable: N
• Product colour: Black
• LED indicators: Y
• Number of fans: 1 fan(s)
• Certification: FCC, CE, RoHS
• Compatible operating systems: Windows
• Power supply included: Y
• AC input voltage: 100 - 240 V
• AC input frequency: 50 - 60 Hz
• Power consumption (max): 124.4 W
• Power over Ethernet (PoE): Y
• Power over Ethernet plus (PoE+) ports quantity: 8
• Power over Ethernet (PoE) power per port: 30 W
• Total Power over Ethernet (PoE) budget: 110 W
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Width: 294 mm
• Depth: 180 mm
• Height: 44 mm
• Cables included: AC
• Rack mount kit: Y
• Resource CD: Y
• Package width: 400 mm
• Package depth: 250 mm
• Package height: 80 mm
