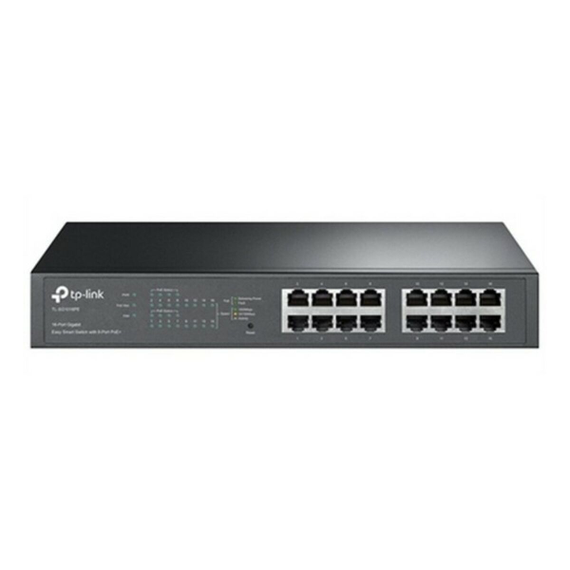

Cabinet Switch TP-Link TL-SG1016PE 16 x RJ45

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Cabinet Switch TP-Link TL-SG1016PE 16 x RJ45 at an unbeatable price.

The TP-Link TL-SG1016PE is a cabinet switch specifically designed for professional environments that require high performance and a secure, efficient network infrastructure. This model features 16 RJ45 Gigabit Ethernet ports, enabling simultaneous connection of multiple network devices with transfer speeds up to 1000 Mbps per port, optimizing traffic management in offices or server rooms. It stands out for its PoE (Power over Ethernet) functionality, allowing both data transmission and power supply through a single cable, making it easy to install devices such as IP cameras, VoIP phones, or wireless access points without the need for an additional power source. Built with a durable black metal chassis, the switch is ready for rack cabinet installation, providing durability and easy cable management in professional spaces. Its switching capacity reaches 32 Gbit/s, ensuring smooth data transfer even in high-traffic networks, and its maximum power consumption is 110 W, integrating energy-efficient features. Equipped with a MAC address table for up to 8,000 entries and compatibility with multiple professional standards such as IEEE 802.1Q and 802.3af/at, the TL-SG1016PE supports advanced VLAN configurations and efficient bandwidth management. Its power supply supports 220 V and 240 V voltages, ensuring adaptability to different electrical environments. All these features make the TP-Link TL-SG1016PE a robust and flexible solution for connecting and powering network devices in corporate or institutional installations where reliability and ease of integration are priorities.

• Energy consumption: 110 W
• Includes:
  • Instruction manual
  • CD
  • Self-assembly Kit
  • Power Cord
  • User manual
• Approx. dimensions: 29,4 x 18 x 4,4 cm
• Connections:
  • RJ45
  • 8
  • SATA
  • Ethernet LAN
  • USB x 3
• Type of plug: Plug EU
• Product with plug: Yes
• Power supply:
  • Electric Network
  • Electric cable
  • CA cable
  • Iincluded
• Colour: Black
• Voltage:
  • 100-240 V
  • 220 V
  • 240 V
  • 100 - 240 V
• Ventilator: 1
• Frequency:
  • 50-60 Hz
  • 50 - 60 Hz
• Material: Metal
• Power:
  • 30 W
  • 110 W
• Ports: 16
• Characteristics: LED in operation indicator
• AC input frequency: 50-60 Hz
• Weight: 1,7 kg
• Working range for humidity: 10 % - 90 %
• Form factor: 1U
• Approx. temperature: -40º / 70º
• Safety: IGMP
• Nuclei: 1 core

What This Product Does

The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

• Switch type: Managed
• Quality of Service (QoS) support: Y
• Web-based management: Y
• Basic switching RJ-45 Ethernet ports quantity: 16
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Gigabit Ethernet (copper) ports quantity: 16
• Networking standards: IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
• 10G support: N
• Copper ethernet cabling technology: 10BASE-T,100BASE-TX,1000BASE-T
• Cable types supported: Cat3,Cat4,Cat5,Cat5e,Cat6
• Port mirroring: Y
• Full duplex: Y
• Flow control support: Y
• Link aggregation: Y
• Broadcast storm control: Y
• Rate limiting: Y
• Auto MDI/MDI-X: Y
• Auto-negotiation: Y
• VLAN support: Y
• Virtual LAN features: Tagged VLAN,Port-based VLAN
• Number of VLANs: 4000
• MAC address table: 8000 entries
• Switching capacity: 32 Gbit/s
• Throughput: 23.8 Mpps
• Store-and-forward: Y
• Number of queues: 4
• Jumbo frames support: Y
• Jumbo frames: 10000
• IGMP snooping: Y
• Static port security: Y
• Loop protection: Y
• Rack mounting: Y
• Stackable: N
• Product colour: Black
• LED indicators: Y
• Number of fans: 1 fan(s)
• Certification: FCC, CE, RoHS
• Compatible operating systems: Windows
• Power supply included: Y
• AC input voltage: 100 - 240 V
• AC input frequency: 50 - 60 Hz
• Power consumption (max): 124.4 W
• Power over Ethernet (PoE): Y
• Power over Ethernet plus (PoE+) ports quantity: 8
• Power over Ethernet (PoE) power per port: 30 W
• Total Power over Ethernet (PoE) budget: 110 W
• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -40 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 5 - 90%
• Width: 294 mm
• Depth: 180 mm
• Height: 44 mm
• Cables included: AC
• Rack mount kit: Y
• Resource CD: Y
• Package width: 400 mm
• Package depth: 250 mm
• Package height: 80 mm
